Waveshare RP2350 2.1inch Capacitive Touch Round Display Development Board, 480×480 IPS Panel Display, 65K Color, 2.5D Curved Touch Panel Version
US$16.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by opensky.peaceliardarts.org
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$16.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by opensky.peaceliardarts.org
Free 30-day returns Details
Product details
| Management number | 216118434 | Release Date | 2026/04/19 | List Price | US$16.00 | Model Number | 216118434 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Compact and Integrated Development Board: The RP2350-Touch-LCD-2.1 is a highly integrated microcontroller development board by Waveshare, featuring a 2.1-inch capacitive touch IPS display, 6-axis IMU (3-axis accelerometer + 3-axis gyroscope), RTC chip, and TF card slot for fast and easy product integration.

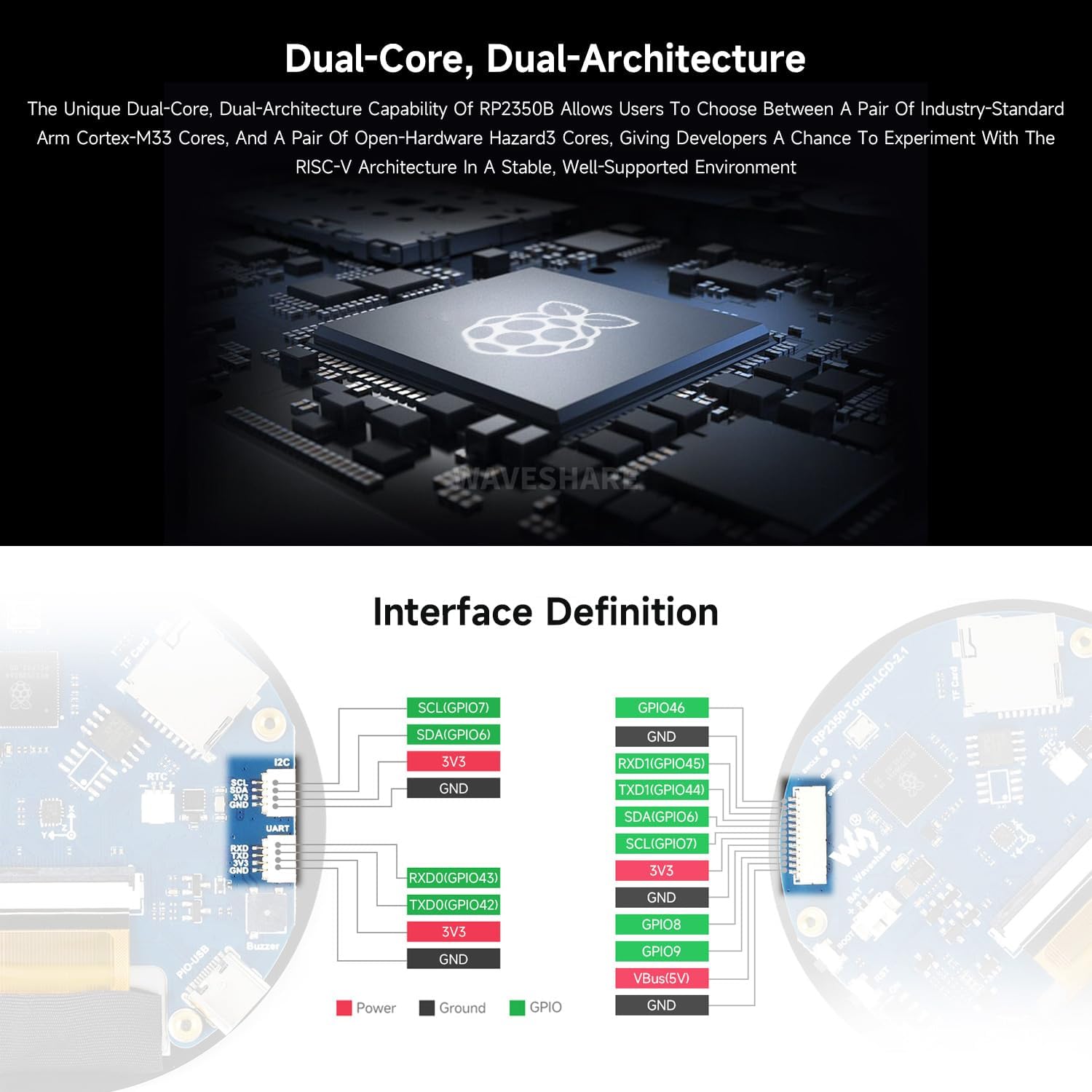

- Dual-Core and Dual-Architecture Processing: Powered by the RP2350B microcontroller chip designed by Raspberry Pi, the board features a dual-core architecture with ARM Cortex-M33 or Hazard3 RISC-V processors running up to 150 MHz, ensuring high performance and flexibility for complex tasks.
- Generous Memory and Storage: Equipped with 520KB of SRAM and 16MB onboard Flash memory, the RP2350-Touch-LCD-2.1 also includes reserved solder pads for PSRAM chip expansion, providing ample space for various applications and data handling.
- Versatile Connectivity and I/O: Offers multiple connectivity options, including USB 1.1 (with device and host support), 9 multi-function GPIO pins, 2 SPI, 2 I2C, 2 UART, 5 ADCs, and 9 PWM channels, enabling easy communication and control with external devices.
- Low Power and Easy Programming: The board features low-power sleep modes and drag-and-drop programming over USB mass storage for convenient development. Additionally, it includes a temperature sensor, accurate clock and timer on-chip, and 12 programmable I/O state machines for custom peripheral support.
| Brand | waveshare |
|---|---|
| Manufacturer | Waveshare |
| BuiltIn Media | RP2350-Touch-LCD-2.1B |
| Mfr Part Number | RP2350-Touch-LCD-2.1B |
| Warranty Description | 1 year |
